Blade Pleating Machine

Technical data：

Pre-slitter

Speed:   0~12M/Min

(Continuously Adjustable)

Paper   width: 32~1000MM

Power:   0.75KW/220V/50Hz

Working air   pressure:0.6Mpa

M/C Weight:   350KG

M/C Sizes:   150*130*110 (CM)

Pleating   imprint puncher

Paper width: 1000MM (Max)

Marking distance: 8~55MM adjustable

Power: 0.75KW/380V/50Hz

M/C Weight: 400KG

M/c: sizes: 155*75*110 (CM)

Pleating Machine

Paper   width: 1000MM (Max)

Pleating   height:8~55MM adjustable

Pleating   speed: 0~200Pleats/Min adjustable

Motor   Power: 1.5KW

Heating   Power: 5KW

Heating   temperature: ≦200°C

Working air   pressure: 0.6Mpa

M/C Weight:   650KG

M/C Sizes:   167*172*140 (CM)

Features:

1、The   pre-iltting machine can accurately and freely adjust the cutting dimensions   through frequency converter speed regulation and cylinder blades in different   filter sizes. It is simple operated but smooth and effective. After slitting   the paper, the conveyor for feeding the filter paper runs in synchronism with   the marking machine by equipping the infrared monitoring system.

2、The   marking machine can mark in different pleat sizes, the marking distance can   be set freely by the computer screen, and accurately marking distance will be   appeared with the step motor loading.

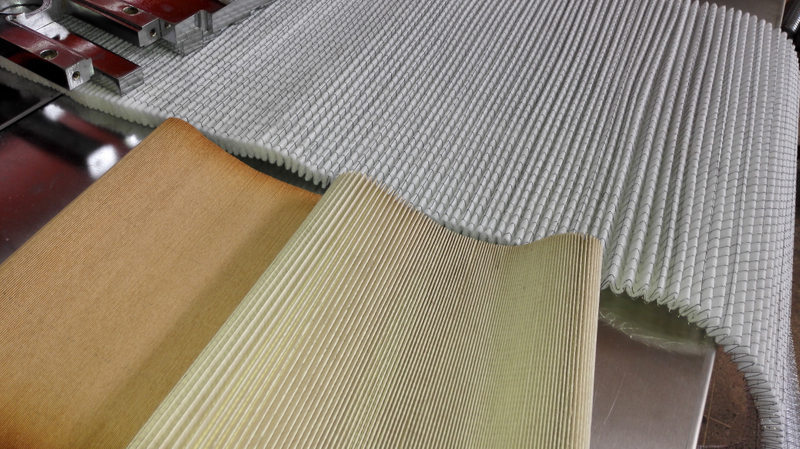

3、The   pleater uses upper and lower blades to alternately finish the folding, then   different pleating heights are acquired evenly and accurately by   automatically adjusting the blades distance.

4、After   marking, the filter paper will be pleated and pre-heated.

5、The   machine is also suitable for folding the iron wire fabric and non-woven   fabric of the hydraulic filter, even the multilayer folding.
