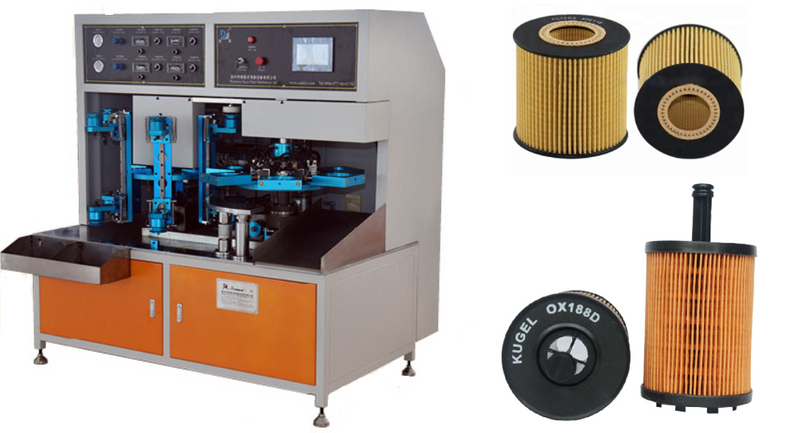

ECO Filter Plastic End Cap Hot-Melt Welding Machine

1. This machine uses infrared heating to make the upper and lower surfaces of the two plastic end caps in a molten state, and quickly connect with both ends of the filter paper in a short time, achieving the purpose of glueless welding.
2. This machine is easy to operate, firm in welding and high in efficiency.
Availability:
Inquire Add to Basket

  • HRHJ-6

  • HRPuri

1. Production speed: 5 pieces/min

2. Workpiece diameter: Ф100mm

3. Working height: 300mm

4. Heating power: 16kw

5. Working pressure: 0.6Mpa

6. Power supply voltage: 380v/50Hz

7. Machine weight: 600kg

8. Dimensions: 1600×1300×1545 (length×width×height)
