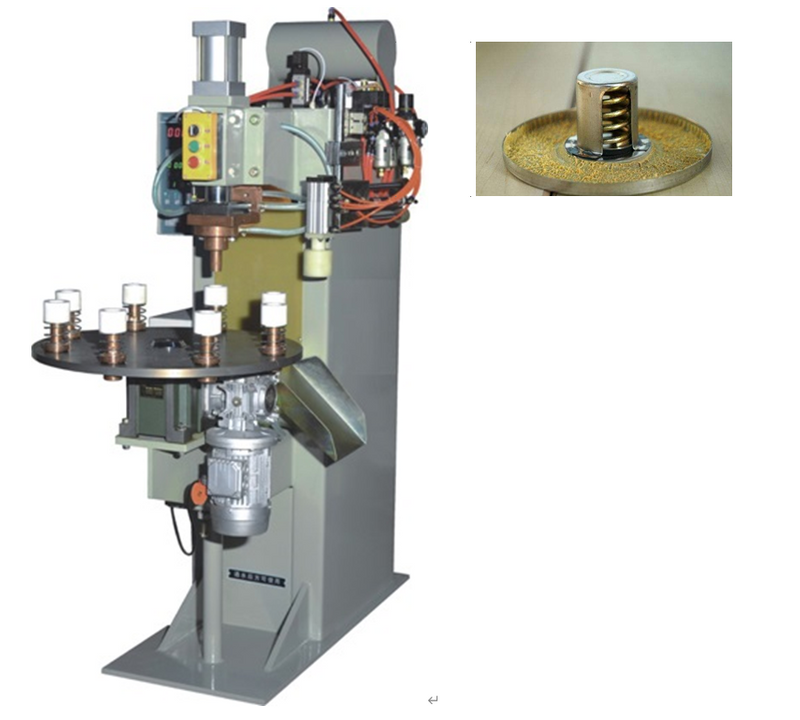

Auto Turntable Bypass Valve Spot Welding Machine

Technical parameters

1. Rated capacity: 100kva

2. Rated primary voltage: 380V/50Hz

3. Number of phases: 1

4. Rated primary current: 263A

5. Working pressure: 0.4Mpa

6. Machine weight: 850kg

7. Dimensions: 1500×800×1700mm (length×width×height)

Main features

1. This welding machine has 8 workstations to place the workpiece, and the workpiece is automatically taken away after spot welding.

2. In this welding, the electrode is compressed to the weldment by pneumatic, and the purpose of spot welding is achieved directly by the heating method of the welding current.

3. Short spot welding time, high efficiency and stable welding quality.
