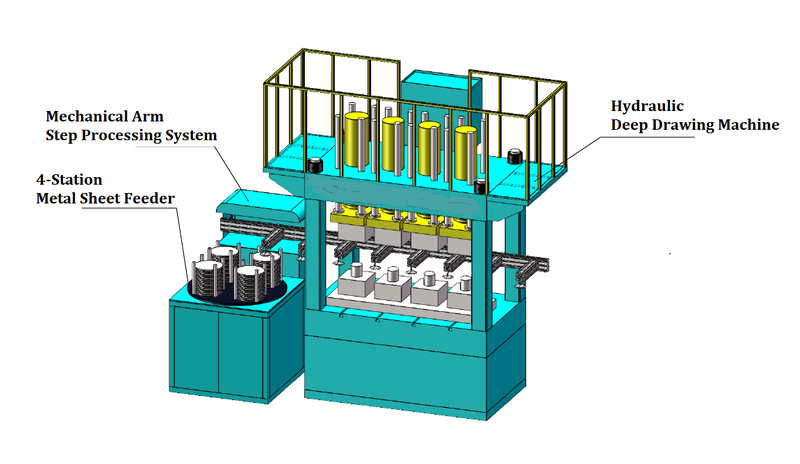

Spin-On Filter Metal Canister Deep Drawing System

4-Station Hydraulic Press Parameters
Nominal force: KN 2600 (four cylinders)
System pressure: MPa 25
Return force: KN 300
Opening height: mm 850
Maximum stroke of upper cylinder: mm 450
No-load speed of upper cylinder: mm KN /s 300
Work speed of upper cylinder: mm/s 50
Upper cylinder return speed: mm/s 300
Ejecting force: KN 700 (four cylinders)
Ejector stroke: mm 200
Ejecting speed: mm/s 150
Retraction speed: mm/s 200
Lifting table area left and right: mm 1650
Front and rear: mm 700
Fuel tank volume: L 2000
Column diameter: mm 135
Servo motor power: KW 15/11/11/11
Operating height: mm 850
Floor space: mm 2000x2800x3250
Total height of machine: mm 3250
